Exposed turrets built for dialing elevation and windage allow wind drift compensation at extended ranges. When we say precise - we mean it. These turrets track better than any Bloodhound and reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fiber optic rotation indicators integrated into the turrets provide a visual cue of your turret’s position.
Key Features:
- XD Lens Elements. Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
- Fully Multi-Coated. Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle. Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Aircraft-Grade Aluminum. Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Precision-Glide Erector System. This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
- Exposed Turrets. Provide fast, accurate and easily read elevation and windage adjustments.
- Radius Bar. Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations.
- Magnification Rib. The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
- Waterproof. O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Fogproof. Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof. Rugged construction withstands recoil and impact.
- Hard Anodized Finish. Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the position.

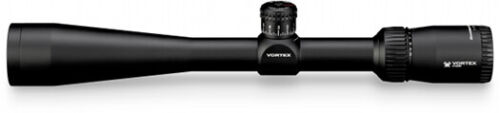

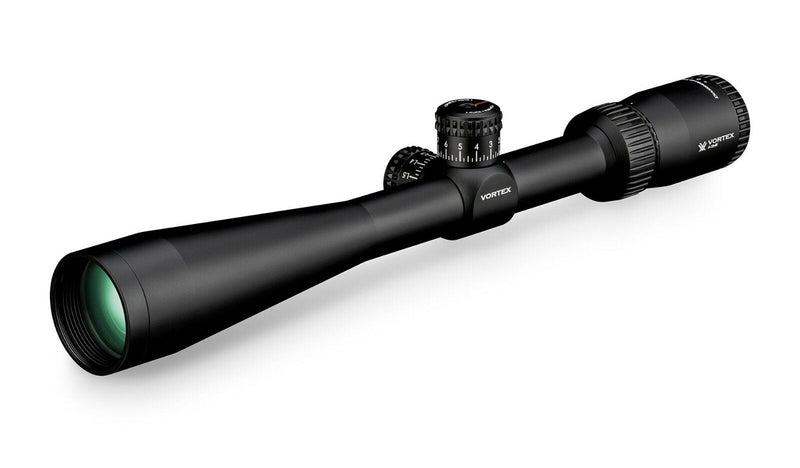

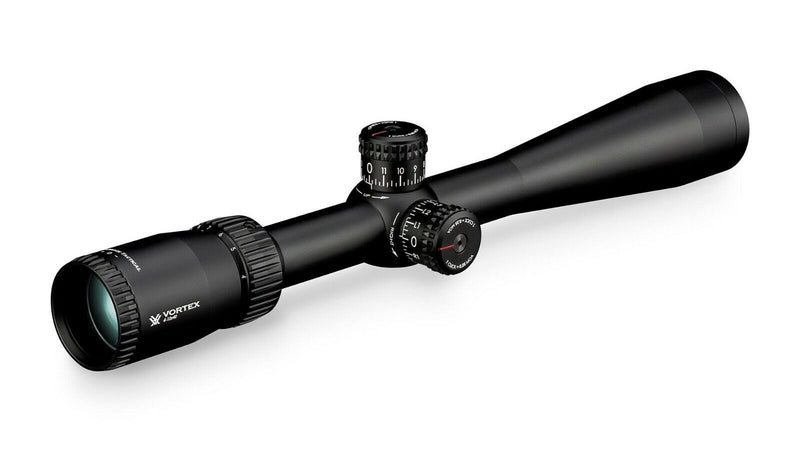

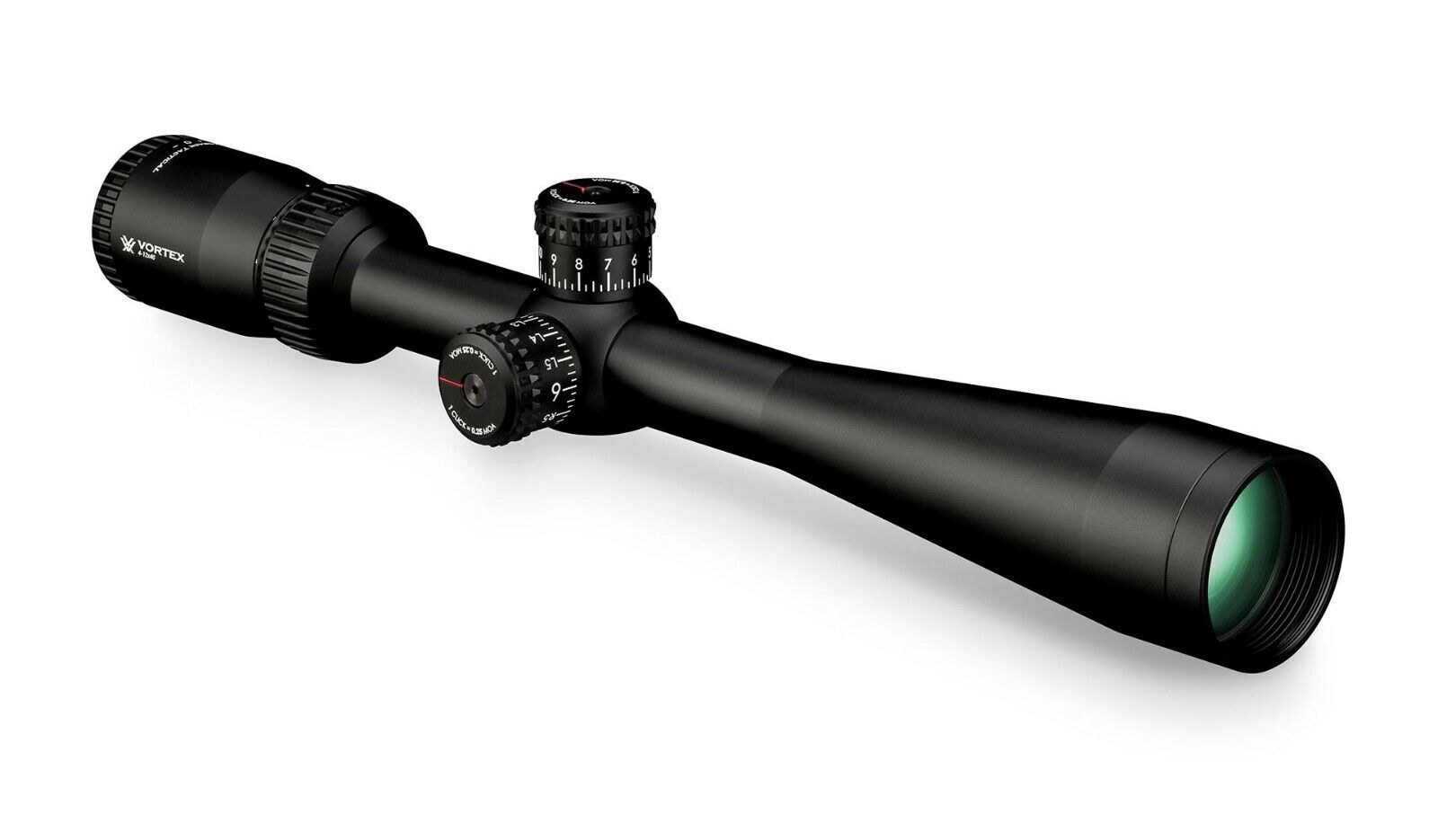

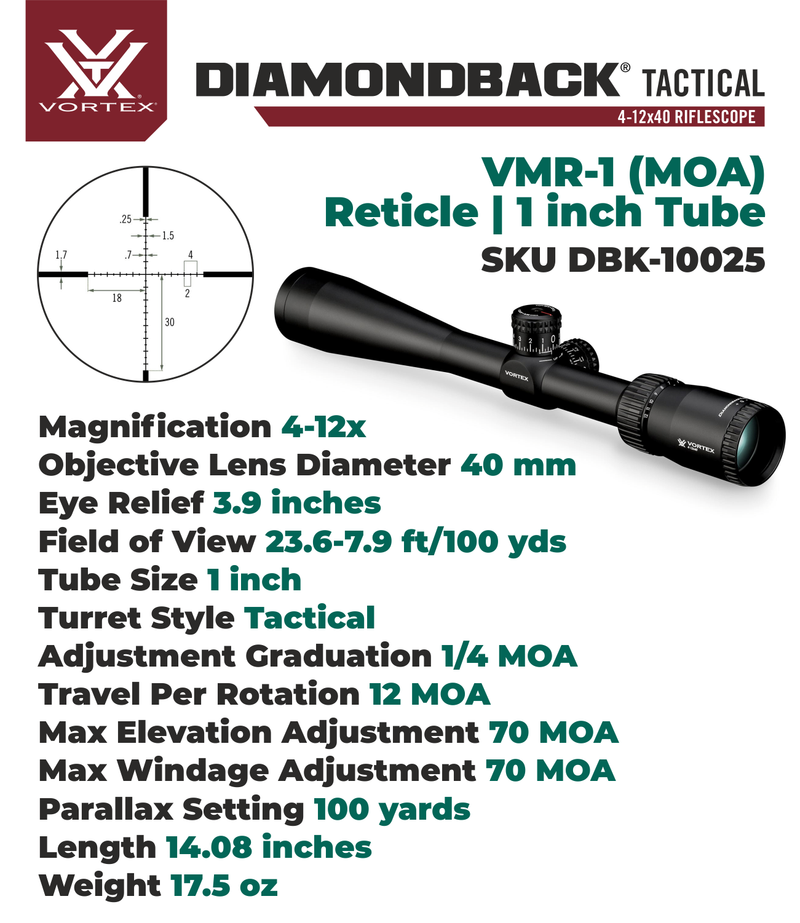

Vortex Optics Diamondback 4-12x40 SFP Riflescope (DBK-10025) Specifications:
- Magnification: 4-12x
- Objective Lens Diameter: 40 mm

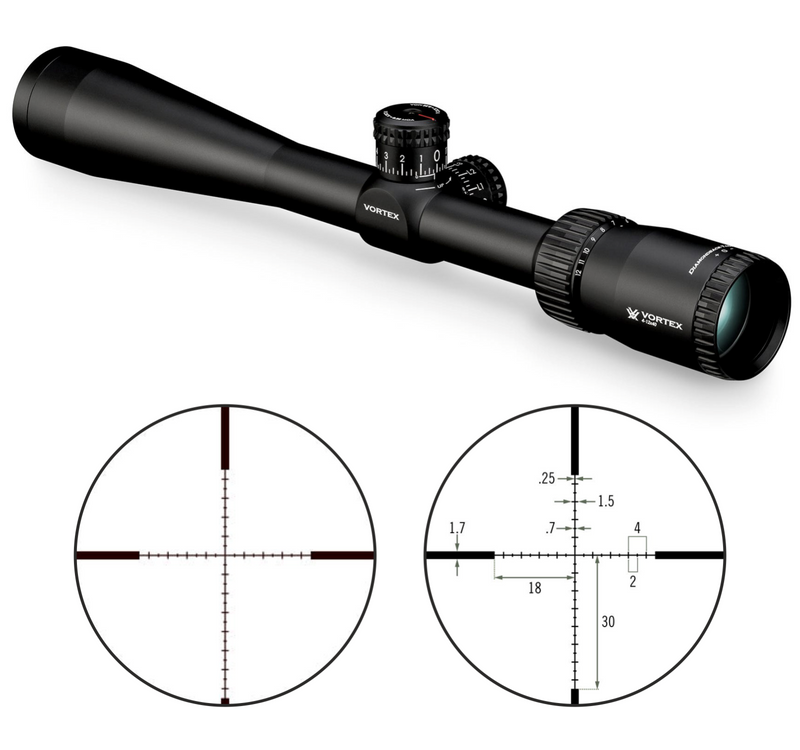

- Reticle: VMR-1 (MOA)
- Tube Size: 1 inch
- Adjustment Graduation: 1/4 MOA
- Parallax Setting: 100 yards
- Max Windage Adjustment: 70 MOA
- Max Elevation Adjustment: 70 MOA
- Travel Per Rotation: 12 MOA
- Field of View: 23.6-7.9 ft/100 yds
- Eye Relief: 3.9 inches

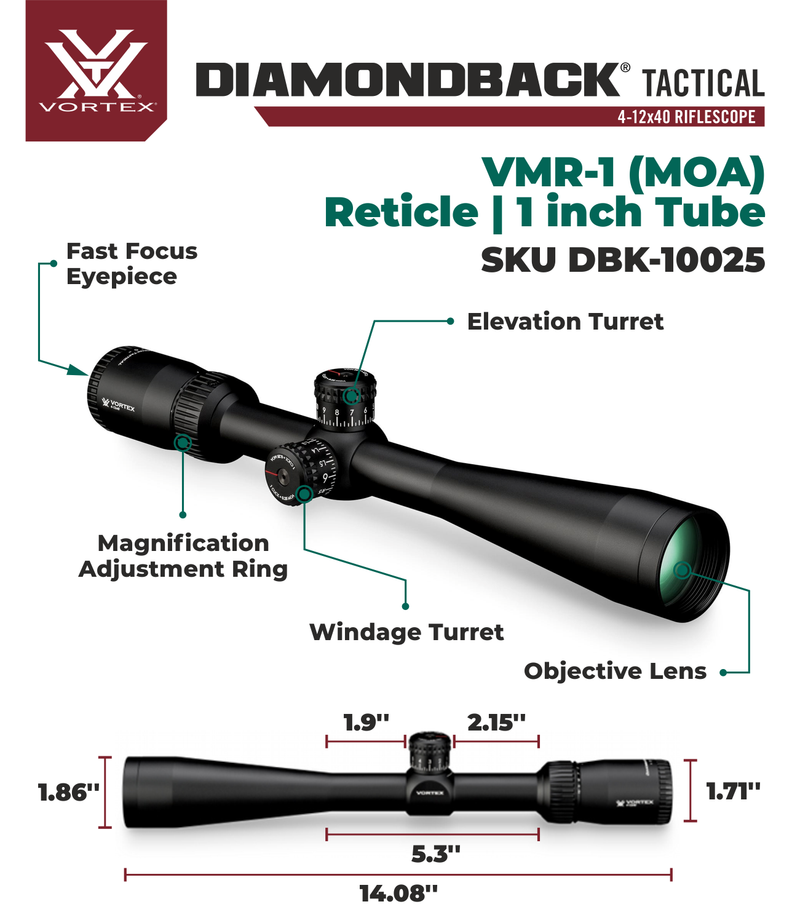

- Length: 14.08 inches
- Weight: 17.5 oz
