Vortex Optics Diamondback 2-7x35 Rimfire Riflescope V-Plex (MOA) Reticle, 1inch

$239.99

Vortex Optics Diamondback 2-7x35 Rimfire Riflescope V-Plex (MOA) Reticle, 1inch

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.

Key Features:

Fully Multi-Coated
Second Focal Plane Reticle
Single-Piece Tube
Aircraft-Grade Aluminum
Waterproof. Fogproof. Shockproof.
Hard Anodized Finish
Fast Focus Eyepiece
Precision-Glide Erector System

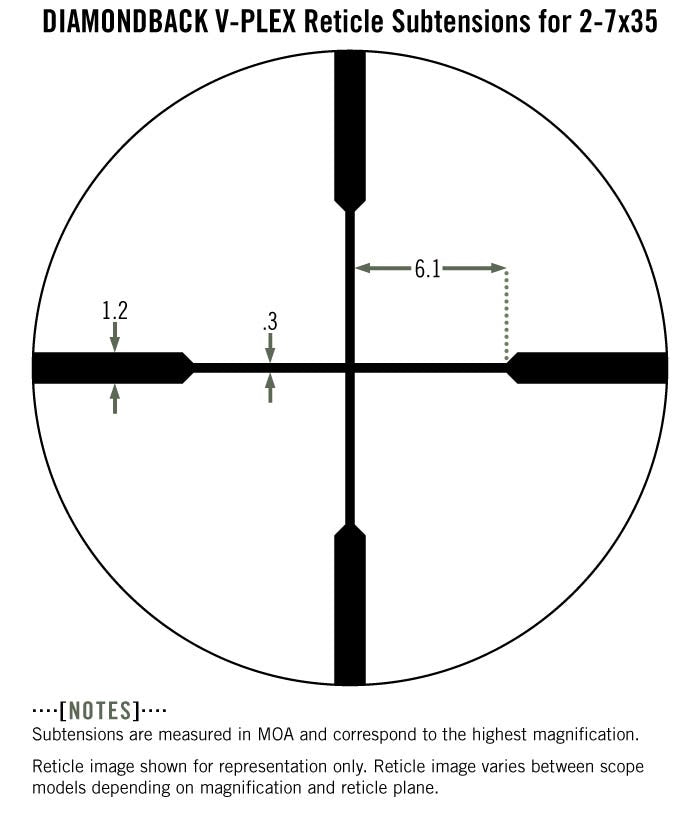

V-PLEX RETICLE (MOA)

A popular all-purpose hunting reticle intended for a wide variety of hunting applications.


Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.	Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.	Tube Size 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.	Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.


Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.	Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.	Precision-Glide Erector System This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.	Fast Focus Eyepiece Allows quick and easy reticle focusing.

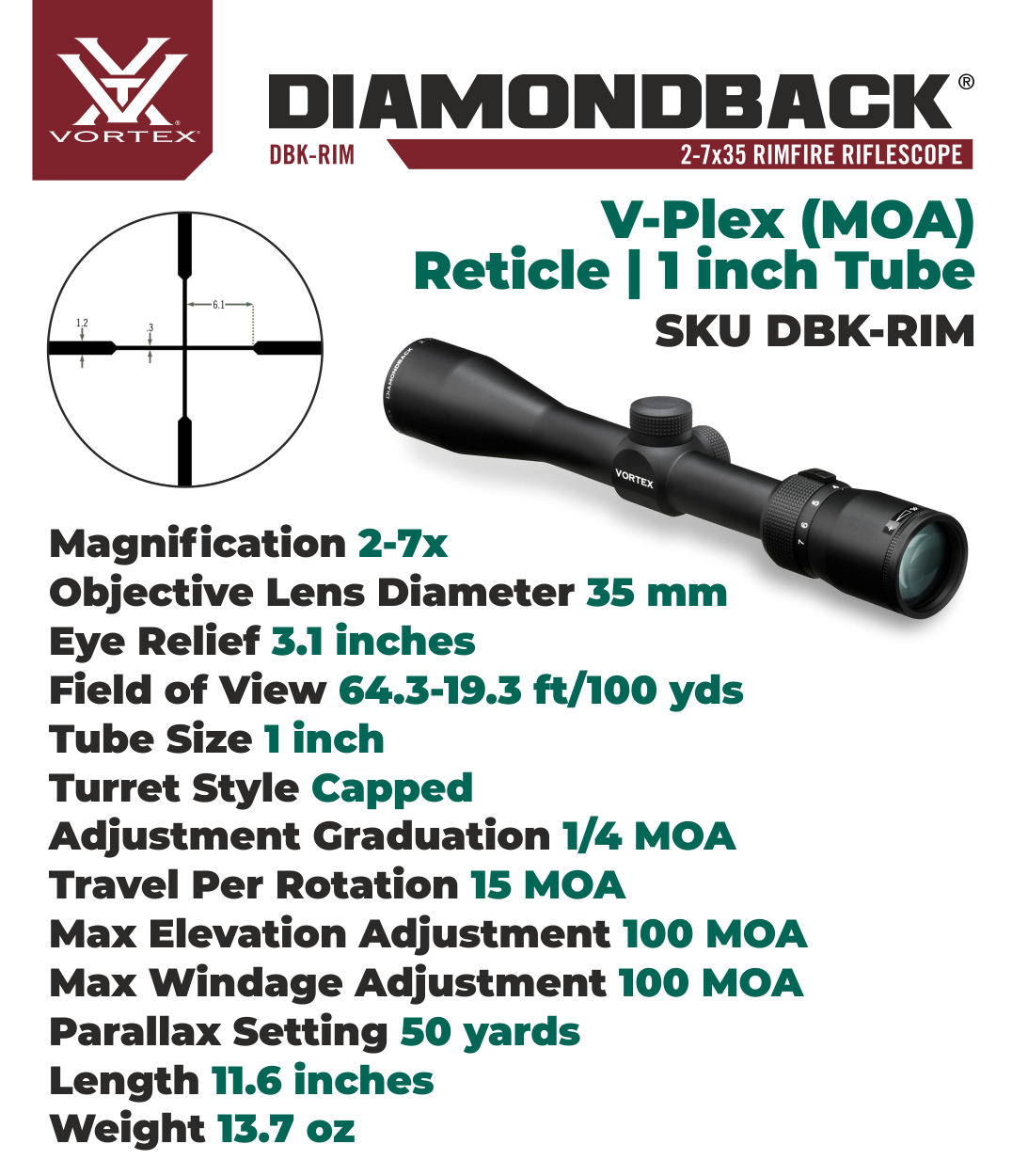

Vortex Optics Diamondback 2-7x35 Rimfire Riflescope V-Plex (MOA) Reticle, 1inch Specifications

Magnification	2-7x
Objective Lens Diameter	35 mm
Eye Relief	3.1 inches
Field of View	64.3-19.3 ft/100 yds
Tube Size	1 inch
Turret Style	Capped
Adjustment Graduation	1/4 MOA

Travel Per Rotation	15 MOA
Max Elevation Adjustment	100 MOA
Max Windage Adjustment	100 MOA
Parallax Setting	50 yards
Length	11.6 inches
Weight	13.7 oz

Vortex Optics Diamondback 2-7x35 Rimfire Riflescope V-Plex (MOA) Reticle, 1inch

Key Features:

V-PLEX RETICLE (MOA)

Fully Multi-Coated

Second Focal Plane Reticle

Tube Size

Single-Piece Tube

Waterproof

Hard Anodized Finish

Precision-Glide Erector System

Fast Focus Eyepiece

Vortex Optics Diamondback 2-7x35 Rimfire Riflescope V-Plex (MOA) Reticle, 1inch Specifications
