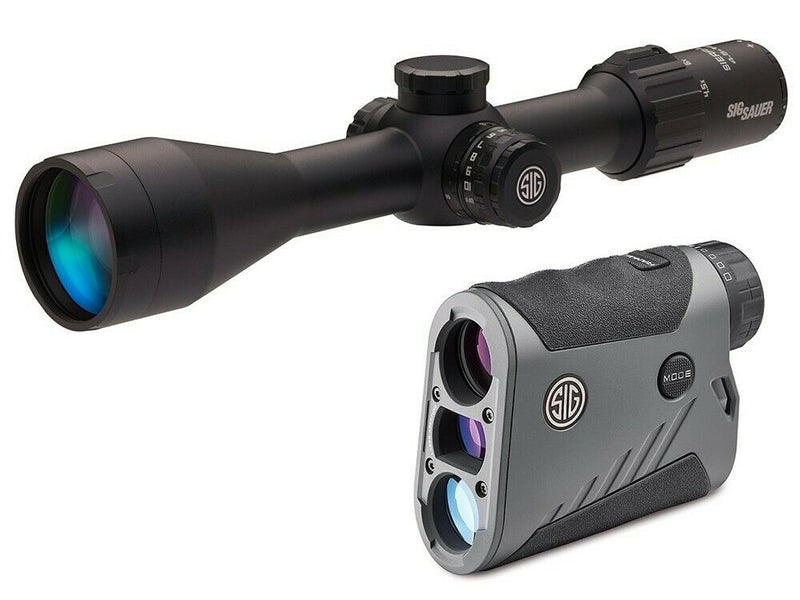

Sig Sauer BDX Kit, Kilo1600BDX LRF and Sierra3BDX Scope 4.5-14x50mm

$899.99

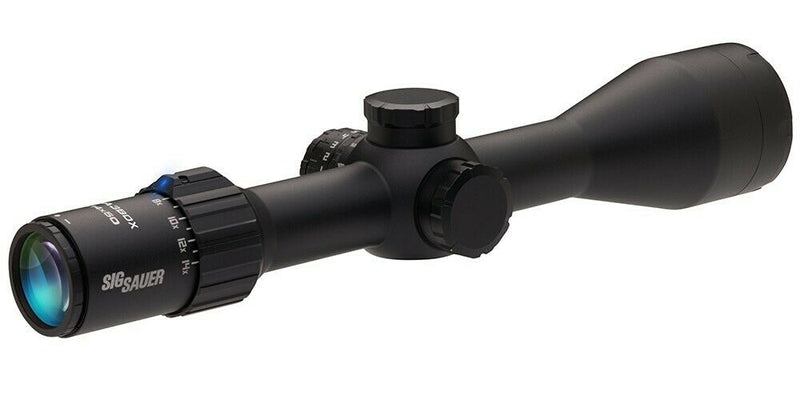

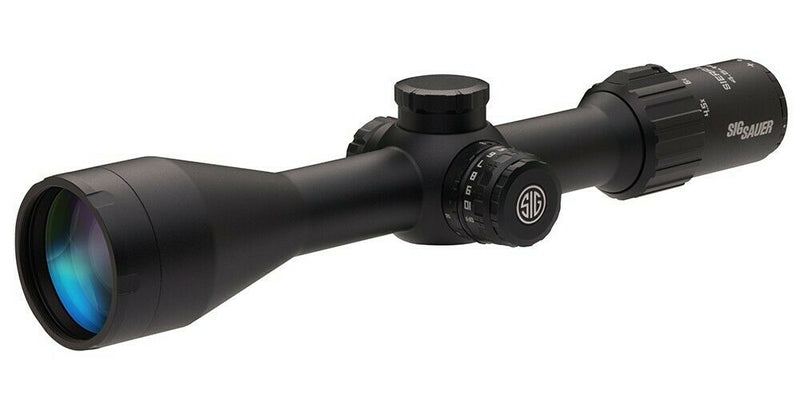

Sierra3BDX 4.5-14X50 mm Scope

Disguised within the form factor of a traditional riflescope lies the power of the SIG SAUER BDX Ballistic Data Xchange. The SIERRA3BDX riflescope provides the hunter an illuminated auto-holdover dot on targets when coupled with a BDX capable KILO rangefinder. Featuring exceptional SpectraCoat lenses, LevelPlex digital anti-cant, and KinETHIC kinetic energy transfer indicator, the SIERRA3BDX is incredibly simple to use. Range a target, put the holdover dot on target, pull the trigger, impact. SIG SAUER’s BDX, just CONNECT THE DOT

Features

Integrated BDX Ballistic Data Xchange
Automatic holdover dot on a Digital Focal Plane
MOTAC (Motion Activated Illumination)
Spectracoat highly efficient, ultra-wide broadband, anti-reflection lens coatings
SIG SAUER’s innovative KinETHIC kinetic energy transfer indicator
Auto LevelPlex

Specifications

FOCAL PLANE	Second
RETICLE	BDX-R1 Digital
ADJUSTMENT INCREMENTS	0.25 MOA
WEIGHT (OZ)	24.9
MAINTUBE DIAMETER	30 mm
TRAVEL PER ROTATION	20 MOA
PARALLAX SETTING	100 Yards
FIELD OF VIEW LOW FT@100 YARDS	19.9

EYE RELIEF HIGH (IN)	3.35
EXIT PUPIL LOW (MM)	8.9
EXIT PUPIL HIGH (MM)	3.6
OBJECTIVE LENS DIAMETER (MM)	30 mm
ILLUMINATION SETTINGS	10 Daylight
WATERPROOFING	IPX 7
MAGNIFICATION	4.5-14x
TOTAL ELEVATION TRAVEL	55 MOA

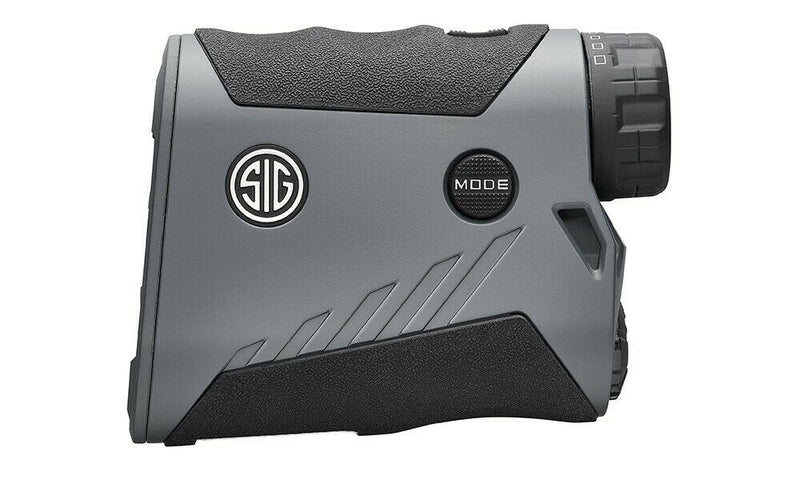

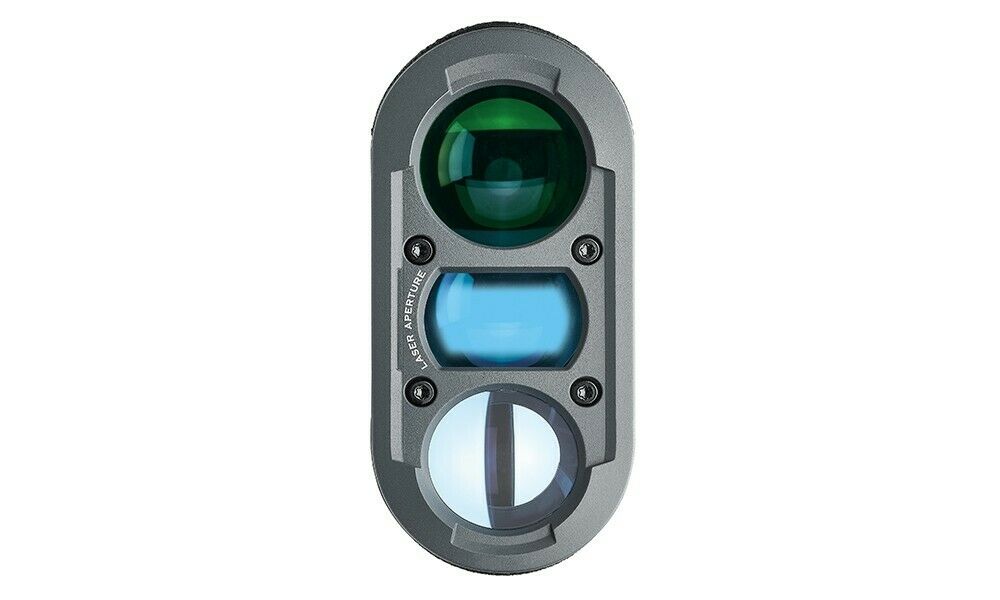

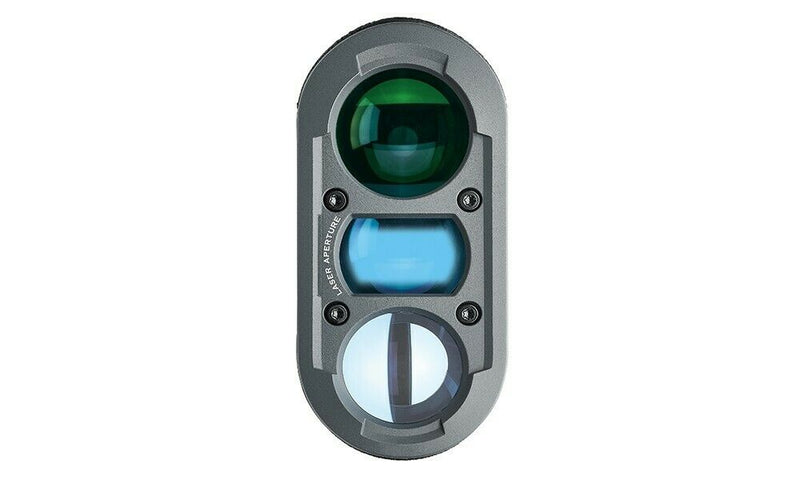

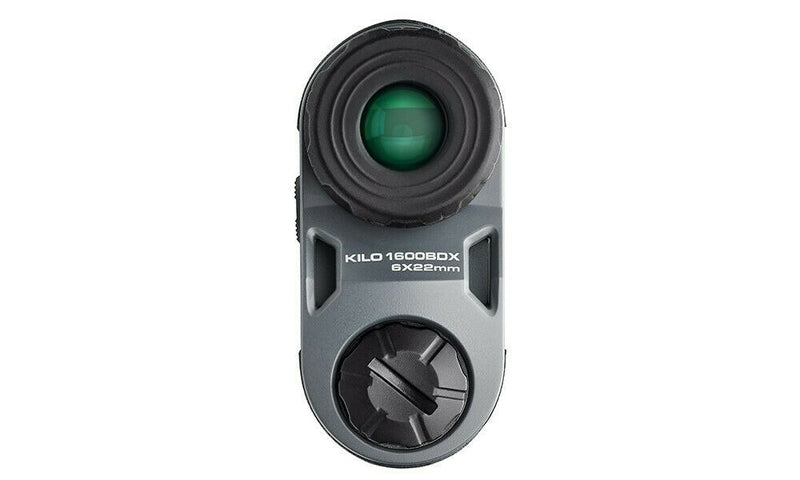

Kilo1600BDX Laser Rangefinder

The KILO1600BDX offers astounding performance, simplicity and value, combining the industry’s fastest LightwaveTM DSP Digital Signal Processing engine with streamlined setup and operation. KILO1600BDX rangefinder modes of operation include Line-Of-Sight (LOS), Angle Modified Range (AMR) and Applied Ballistics Ultralight (ABU) for use with the Ballistics Data Xchange (BDX) system. In ABU mode, the KILO1600BDX utilizes the shooters ballistic profile and environmental parameters to instantly calculate precise windage and elevation solutions in either MOA or MILS. This information is displayed in the rangefinder and is also communicated via Bluetooth™ to any paired BDX sight to provide the exact illuminated holdover aiming point.

Features

BDX™ Ballistic Data Xchange capable
6x22 mm monocular with SpectraCoat anti-reflection coatings for superior light transmission
Revolutionary Lightwave DSP Technology for the fastest and longest distance rangefinder engine
HyperScan provides 4 range updates per second in scan mode
Embedded Applied Ballistics Ultralite with bullet database and support for G1/ G7 drag curves
Features line of sight or angle modified range. Units in yards or meters to tenth Y/M resolution
Transparent Red OLED display for daytime and low light use

Specifications

MAGNIFICATION	6x
OBJECTIVE LENS DIAMETER (MM)	22 mm
FIELD OF VIEW	6'
EYE RELIEF	17 mm
OVERALL LENGTH	4.3 in
HEIGHT	3.0 in
OVERALL WIDTH	1.4 in
WEIGHT (OZ)	5 oz

LASER DIVERGENCE	4.0 MRAD
WATERPROOFING	IPX-4
RUN TIME	4000 ranges
DIOPTER ADJUSTMENT RANGE	+/- 3
RANGE ON DEER	Up to 800 y
RANGE ON TREES	Up to 1000 y
MAX REFLECTIVE	Up to 2000 y
BATTERY	(1) CR2
