Be ready at a moment’s notice by using our most advanced auto-ranging digital bow sight yet. With a fast and easy to set up, giving you line of sight feedback to take your best shot every time.
No need to guess the distance to your target. This sight calculates it automatically. Set dual pin colors, so you can find the right distance fast. Quickly fine-tune your sight for the easiest setup yet. Automatically creates pin stack to the estimated maximum distance for your bow based on arrow speed, draw length, and arrow diameter. Easy on, easy off. If you travel with your bow, you’re going to love the quick-detach feature.
One-year battery life means more time hunting and more confidence in your shot.
MICROADJUSTMENTS
Microadjustable rails let you make quick, precise changes for elevation, windage and laser reticle alignment.

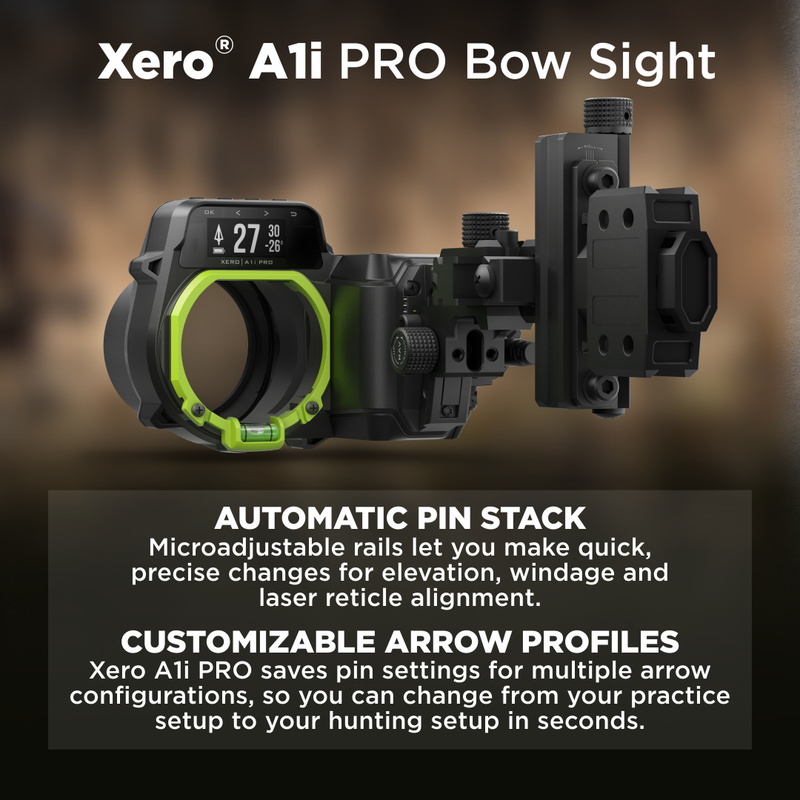

AUTOMATIC PIN STACK
Calibrate your 20-yard pin, enter your bow speed, draw length and arrow diameter and Xero A1i PRO will automatically create a pin stack to your bow’s estimated maximum distance.
QUICK-DETACH FEATURE
Easily remove the bow sight for travel, then reattach it to its original position in seconds when you’re ready to use it.
CUSTOMIZABLE ARROW PROFILES
Xero A1i PRO saves pin settings for multiple arrow configurations, so you can change from your practice setup to your hunting setup in seconds.
DUAL-COLOR LED PINS
Easily identify preset distances by using alternating pin colors for fixed pins.

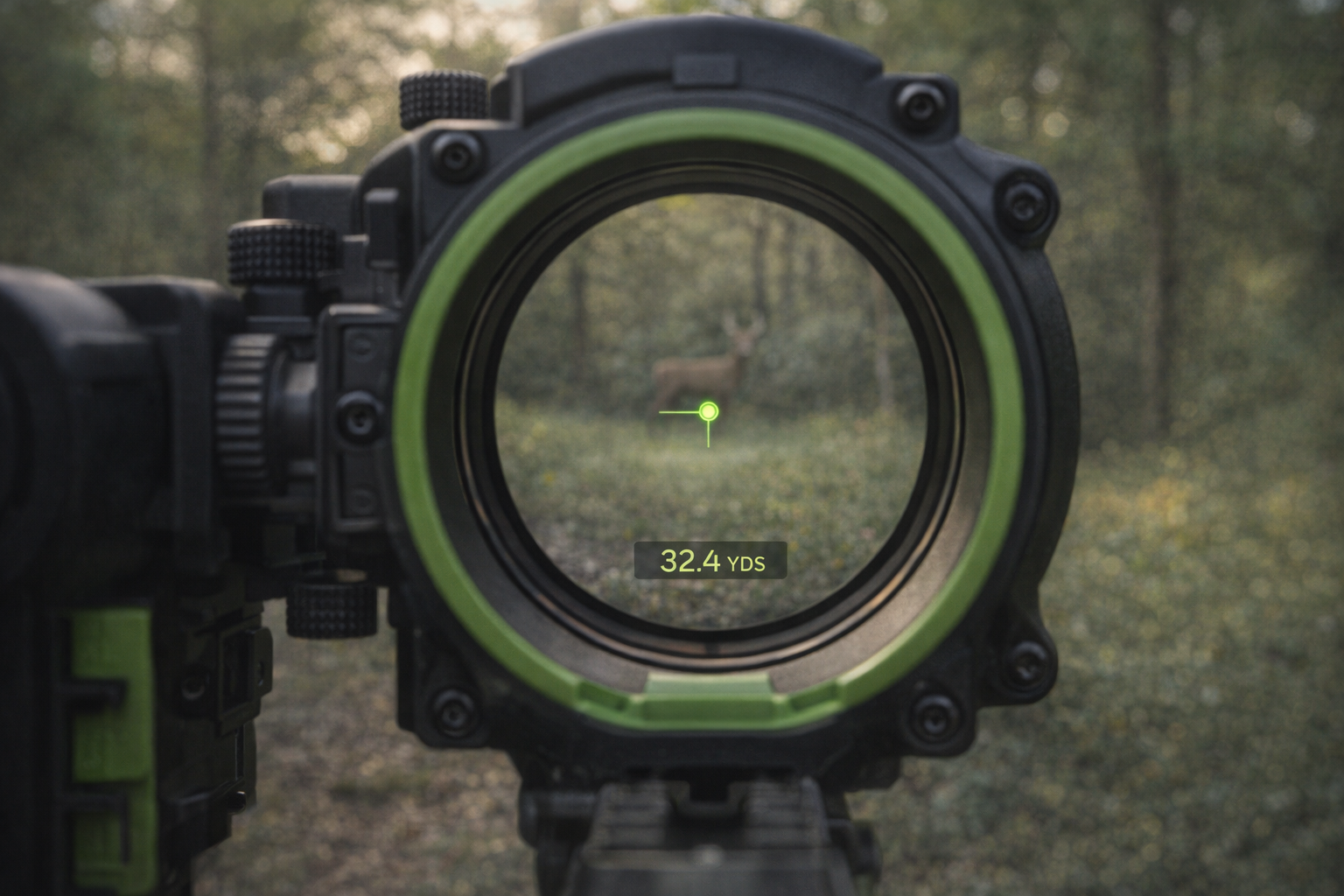

LASER RANGE FINDER
Get instant angle-compensated distance to game up to 100 yards away or reflective targets up to 300 yards away.

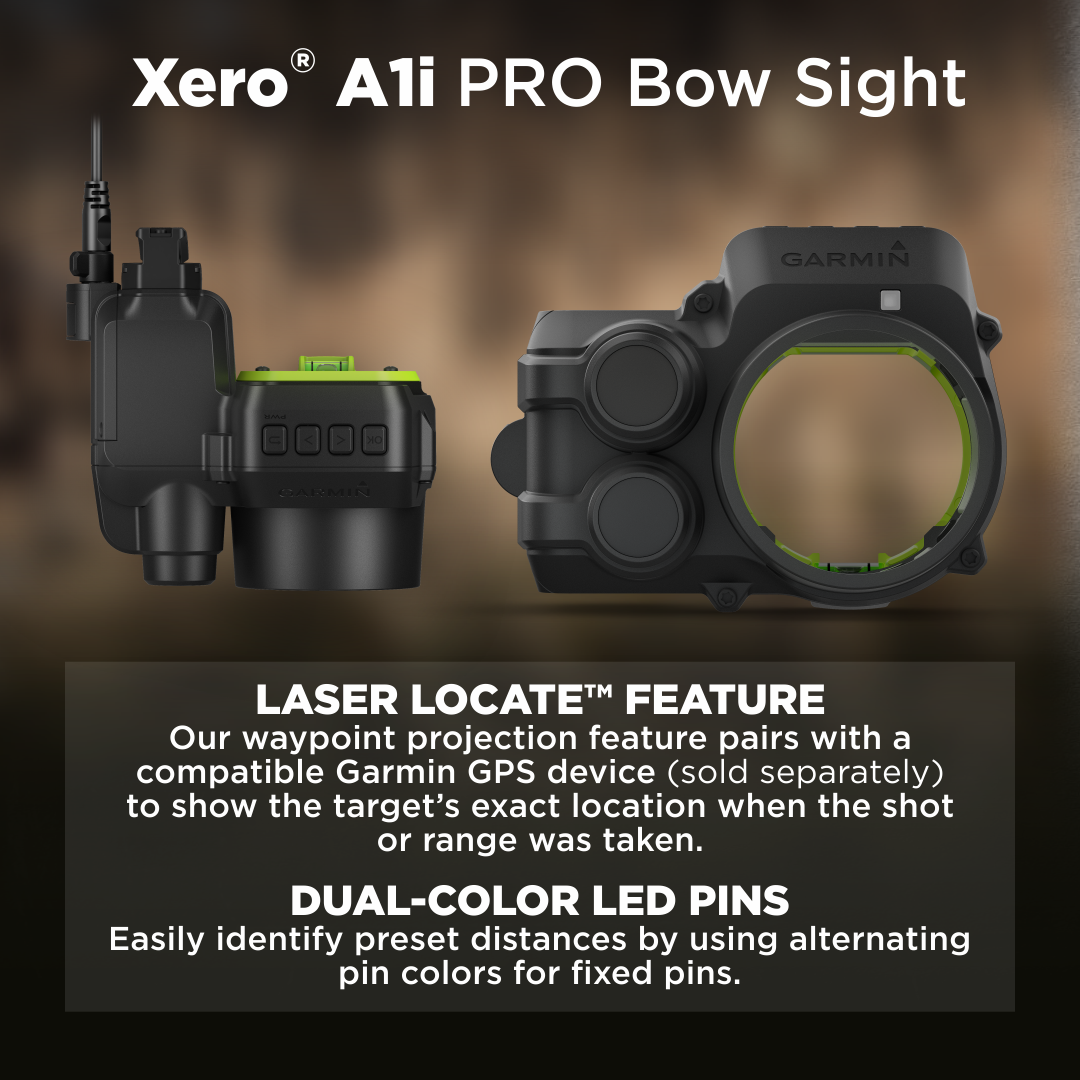

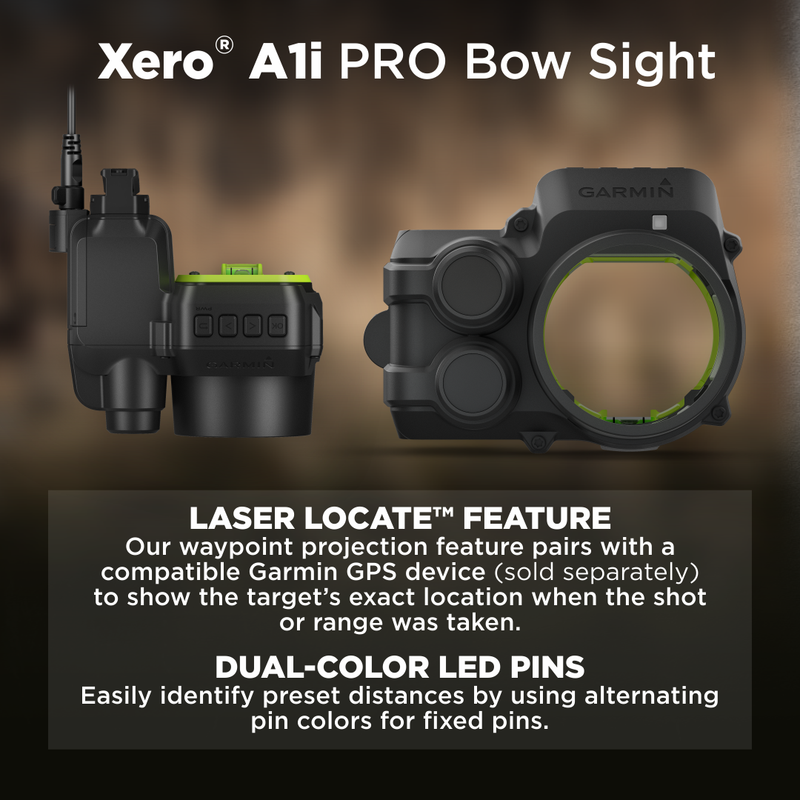

LASER LOCATE FEATURE
Our waypoint projection feature pairs with a compatible Garmin GPS device (sold separately) to show the target’s exact location when the shot or range was taken.

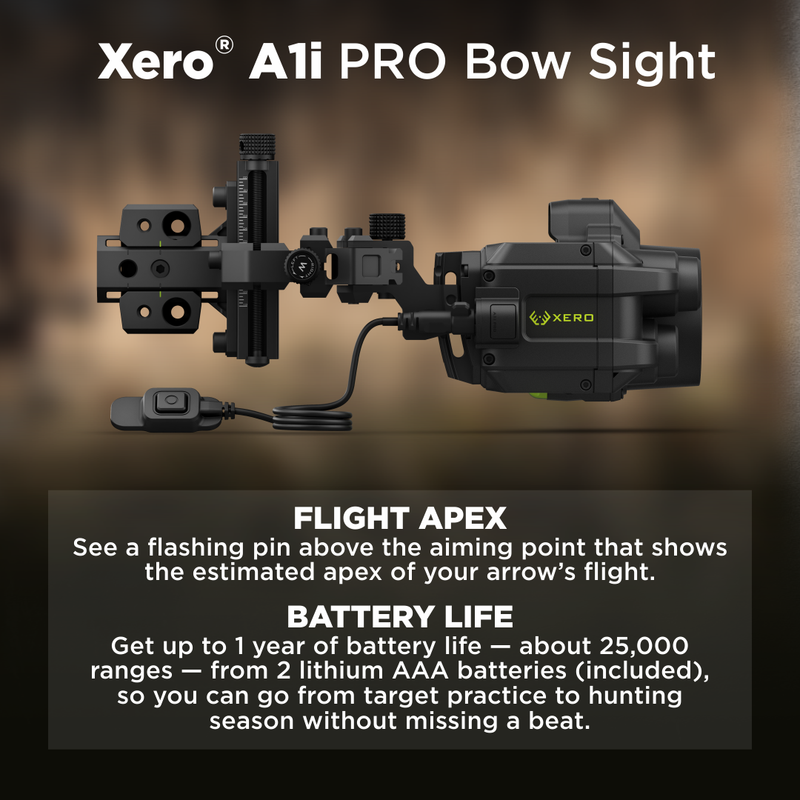

FLIGHT APEX
See a flashing pin above the aiming point that shows the estimated apex of your arrow’s flight.
XTRA DISTANCE MODE
In this mode, you can set your sight in an extended position to show pins out to farther distances.
Garmin Xero A1i PRO Bow Sigh Specifications

• Display size 1.00"W x 0.42"H (2.5 x 1.1 cm); 2.0" diag (5.0 cm)
• Battery type 2 lithium AAA (included)
• Display resolution 160 x 68 pixels
• Physical dimensions 9.2” x 5.0” x 3.7” (233.8 x 127.2 x 94.7 mm) (includes device and mount)
• Water rating IPX7
• Weight 18.0 oz (510.3 g) (includes device and mount)
• Display type sunlight-visible, transflective memory-in-pixel (MIP)
• Battery life Up to 1 year
• LED pins 2 colors (red and green)
• Pin diameters .007” and larger for red, .009” and larger for green
• Range 100 yards to game; 300 yards to reflective targets
• Operating range -20C (-4F) to 60C (140F)
• Light projection No visible light is ever projected toward the target
• Pin brightness Ambient light sensor controlled or manual
• Magnification None

In The Box Garmin Xero A1i PRO Bow Sigh Auto-ranging Digital Sight with Dual-color LED Pins and
Micro-adjustable Rails with Wearable4U Lens Cleaning Pen Bundle (May Vary).
